Garage door quick release pin

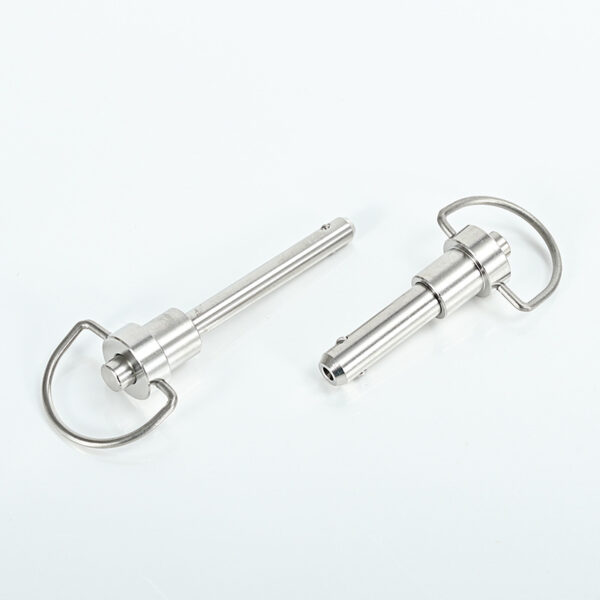

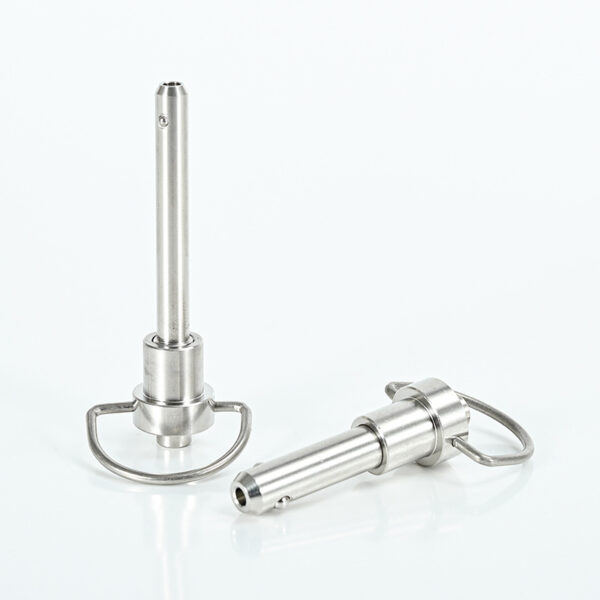

is engineered for high-strength and repeat-use fastening in machinery, mold setups, automation systems, and aerospace tooling. Featuring a D-ring handle for easy grip and pull, it allows for tool-free insertion and removal while maintaining secure retention under load.

Manufactured from stainless steel 304, this pin offers excellent resistance to corrosion and wear, making it suitable for both indoor and outdoor applications. The D-ring handle provides a reliable grip, especially when working with gloves or in tight spaces.

The spring-loaded ball mechanism ensures automatic engagement once inserted, preventing accidental disengagement. This design is ideal for quick-change tooling, jig positioning, and assembly fixtures that require frequent adjustments.

✅ Technical Specifications

Material: Stainless Steel 304 (Pin + Handle)
Finish: Natural or Polished
Pin Diameters (A): 5 mm to 25 mm
Usable Lengths (H): 10 mm to 100 mm
Tolerance: +0.00 / -1.00 mm
Handle Style: D-Ring / Butterfly Handle
Lock Mechanism: Spring-loaded dual-ball
Cycle Rating: 10,000+ operations

✅ Dimensional Table (mm)

Diameter (A)	Usable Length (H)	ΦA	B	C	D	E	G	H	I
5 mm	10 – 50 mm	4.92–4.96	5.54–7	±0.00/-1.00	6.4–7.9	7.9–13.5	18.5–37.8	26.9–36.8	2
6 mm	10 – 50 mm	5.92–5.96	6.54–8	±0.00/-1.00	6.4–7.9	7.9–13.5	18.5–37.8	26.9–36.8	2
8 mm	10 – 50 mm	7.92–7.96	8.54–9	±0.00/-1.00	6.4–7.9	7.9–13.5	18.5–37.8	26.9–36.8	2
10 mm	10 – 50 mm	9.92–9.96	11.86–9	±0.00/-1.00	7.6–9.9	11.4–16.5	23.9–37.8	26.9–36.8	2
12 mm	15 – 60 mm	11.92–11.96	14.15–10	±0.00/-1.00	7.6–9.9	14–18	24.9–40.1	27.7–47	2
16 mm	15 – 60 mm	15.92–15.96	18.14–14	±0.00/-1.00	14.7–19.1	23–35.6	46.7–57.2	3
20 mm	20 – 80 mm	19.92–19.96	24.08–17	±0.00/-1.00	14.5–22.2	26.5–41.3	50.5–67.3	3
25 mm	30 – 100 mm	24.92–24.96	30.94–22	±0.00/-1.00	19.1–29.8	33.8–50.8	41.7–78.7	3

Custom sizes and technical drawings are available on request.

✅ Applications

Mold changing systems
Jig and fixture positioning
Aerospace tooling
Marine and deck equipment
Automated machine setups

✅ Product Features

Quick and secure fastening – no tools required
Spring-loaded locking balls – self-locking mechanism prevents accidental pullout
Corrosion-resistant – 304 stainless steel for harsh environments
️ D-ring handle – easy operation even with gloves
Custom grip lengths and diameters available

✅ How to Order

To request a quote, please provide:

Required pin diameter and grip length
Estimated quantity
Application environment (if special surface treatment is needed)
Any CAD drawing or customization request
