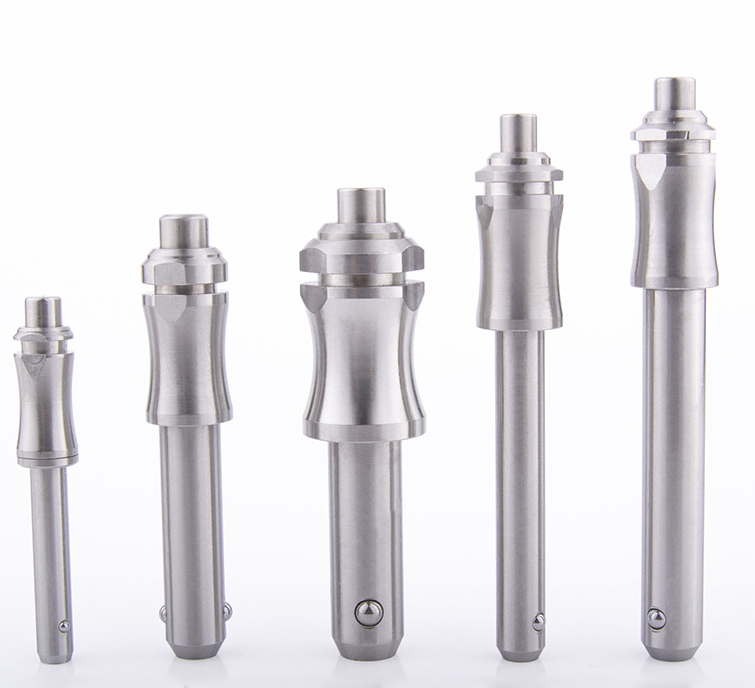

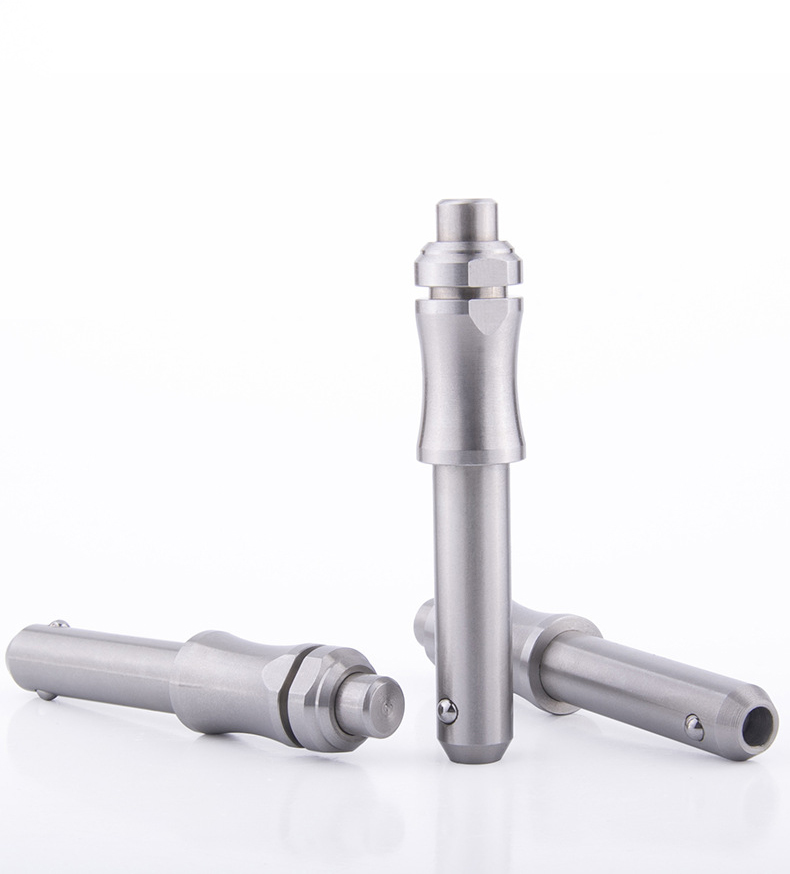

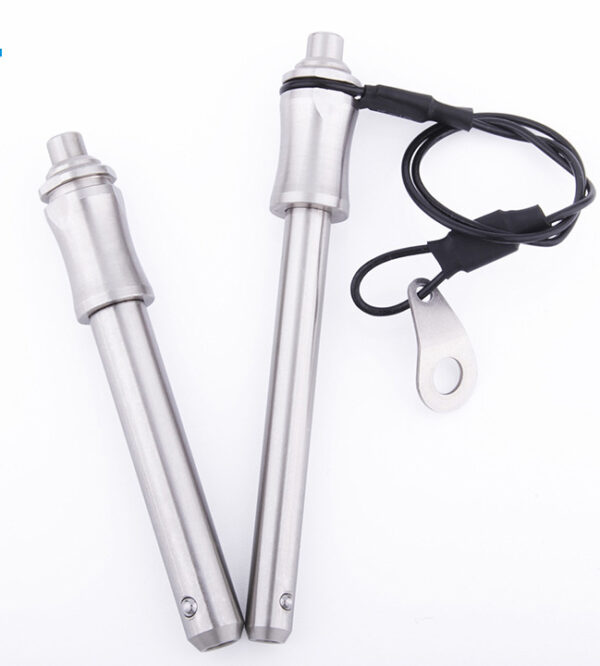

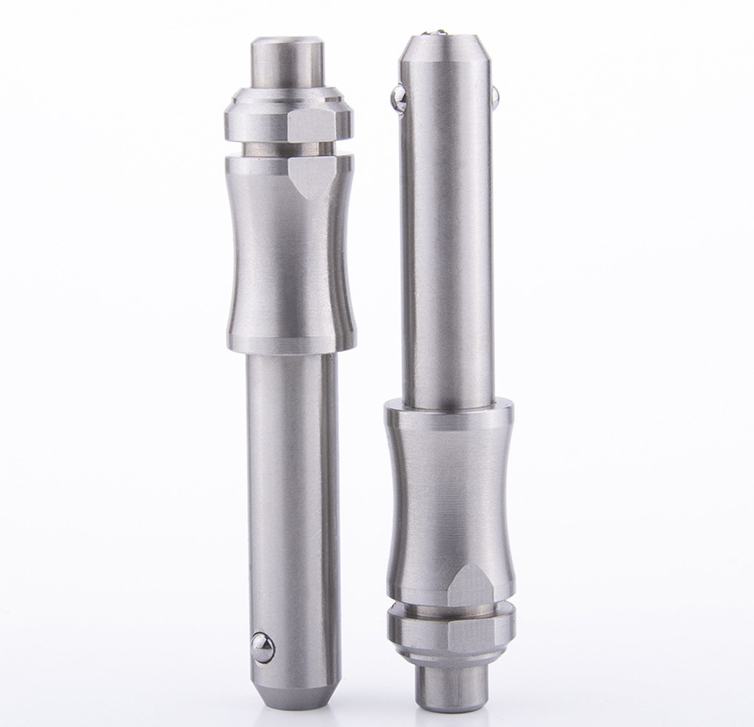

Push button quick release pin

This Push button quick release pin is designed for heavy-duty fastening where speed, safety, and precision are essential. The pin features a contoured handle for a comfortable grip, allowing operators to insert and remove the pin efficiently—even with gloves.

Built from high-grade stainless steel, the shaft and handle provide excellent resistance to corrosion and wear, making this pin ideal for indoor and outdoor industrial environments. The spring-loaded dual ball locking mechanism securely engages with the mating hole, preventing accidental withdrawal during operation.

Its sleek body profile and precise tolerances ensure smooth fit and repeatable performance in aerospace fixtures, robotic arms, modular tooling systems, and more.

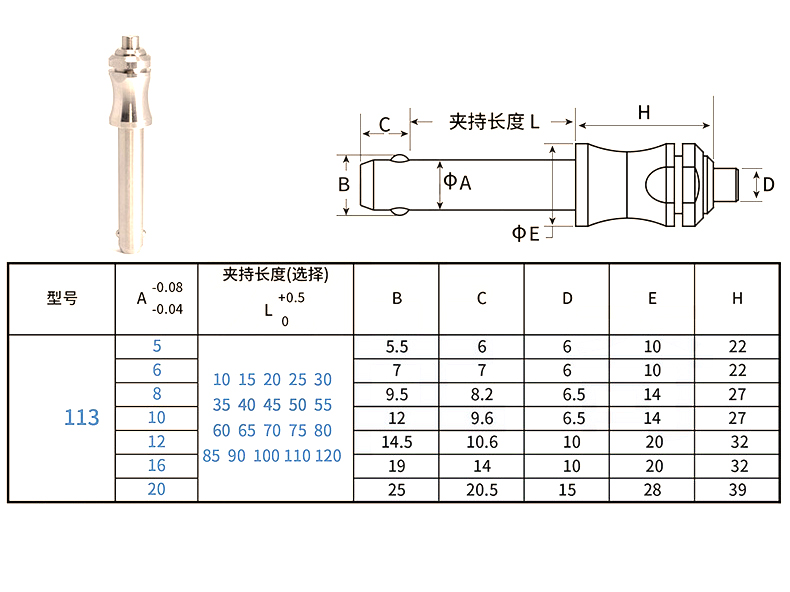

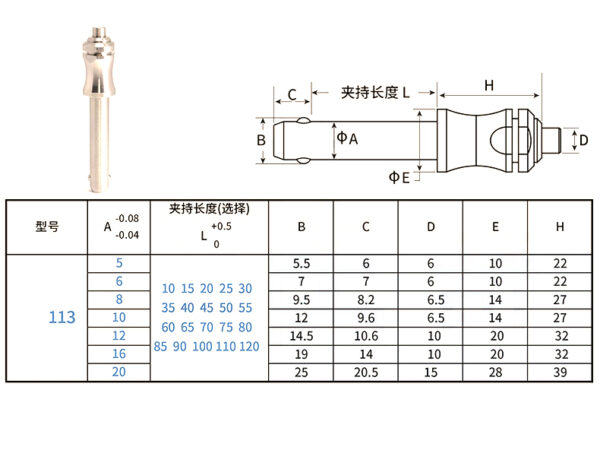

✅ Technical Specifications

• Material: Stainless Steel 304 / 316 (customizable)

• Ball Material: SUS440C, HRC55+ hardened

• Locking Mechanism: Spring-loaded dual ball system

• Handle Type: Ergonomic contoured grip, integrated push-button release

• Diameter Range: Ø5 mm to Ø20 mm

• Grip Lengths: 10 mm – 100 mm (custom available)

• Surface Finish: Natural / Passivated / Brushed

• Tolerance: ±0.05 mm

• Cycle Life: Over 10,000 cycles

✅ Applications

• Aerospace positioning fixtures

• High-speed mold and die change systems

• Modular tool change setups

• Automotive assembly tooling

• Precision mechanical assemblies

• Robotics & automation arms

✅ Key Features & Benefits

• Push-button release for fast and tool-free operation

• Secure dual ball locking prevents accidental release

• ️ Precision fit with tight tolerances

• Ergonomic contoured handle for better grip and control

• Corrosion-resistant stainless steel construction

• Custom sizes, logo engraving, and material upgrades available

✅ Ordering Guidelines

To receive a quote, please include:

• Pin diameter and grip length

• Preferred material (e.g., SS304 or SS316)

• Quantity and delivery timeline

• Special requests (e.g., coating, handle engraving, packaging)
