Quick Release Blade Pin

✅ Quick Release Blade Pin Description

This Quick Release Blade Pin is designed for quick, secure fastening and positioning in a wide range of industrial and mechanical applications. Made from stainless steel 304, this pin offers excellent strength and corrosion resistance, ensuring reliable performance even in challenging environments.

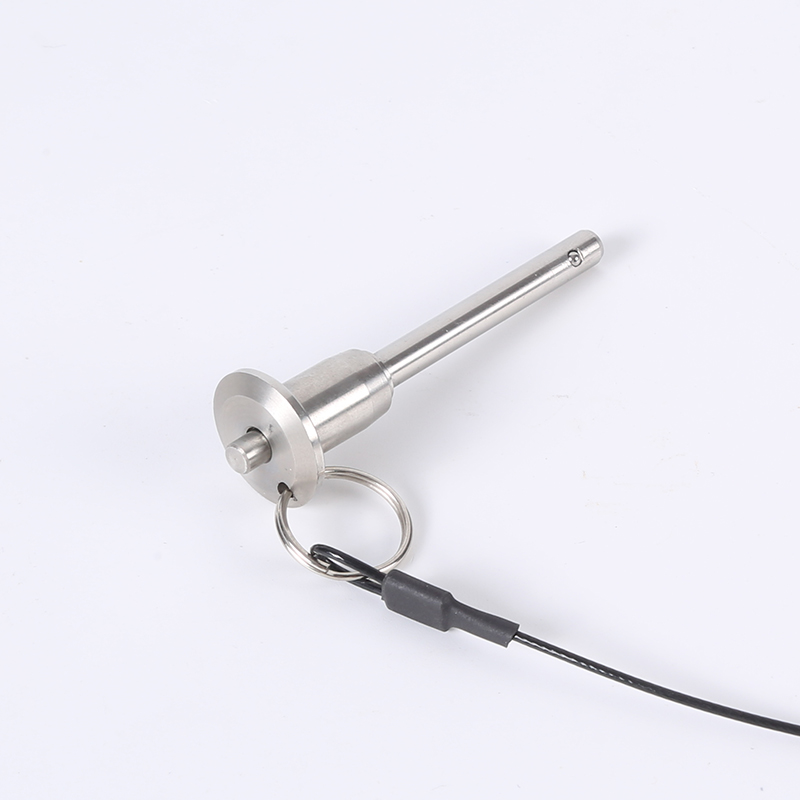

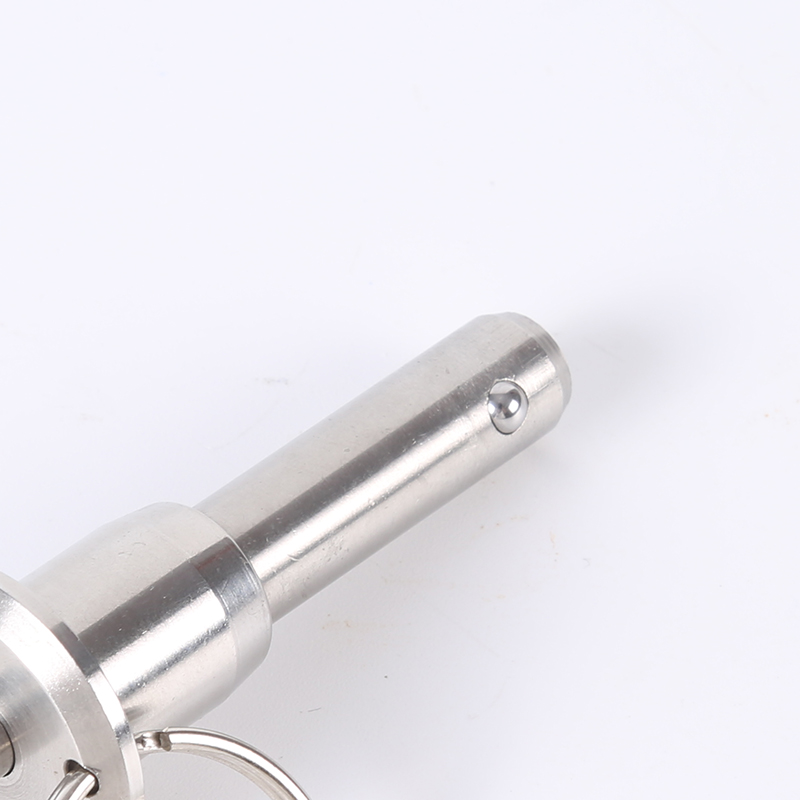

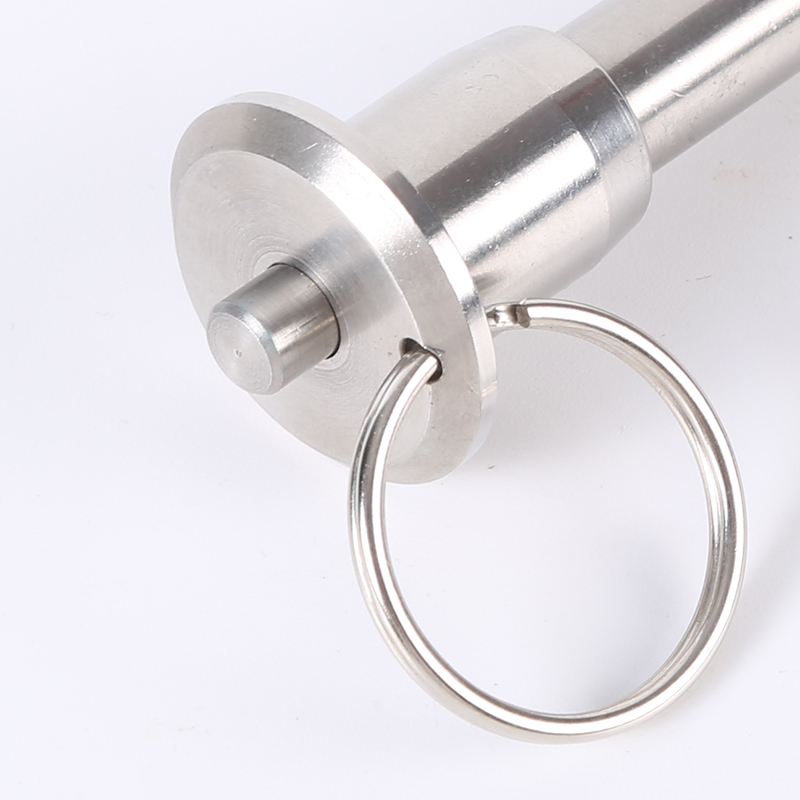

The pin features a flat round head with a central push button, which activates a spring-loaded locking mechanism. When the button is pressed, the balls at the tip retract, allowing the pin to be inserted into or removed from a mating hole. Once released, the balls expand to lock the pin securely in place. This simple operation ensures fast installation and removal without tools.

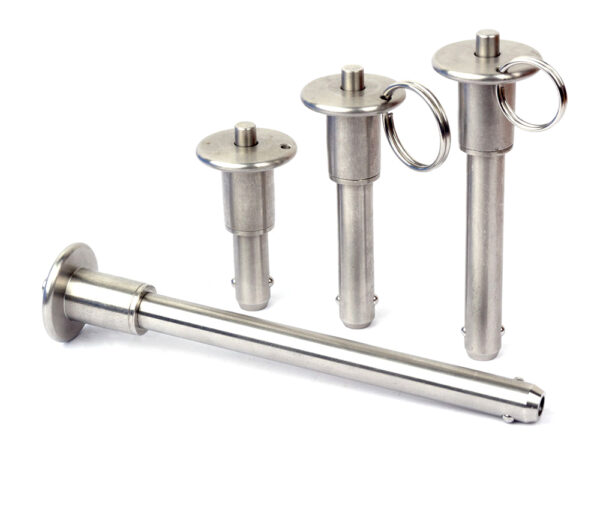

The product is available in multiple diameters and grip lengths, and can be supplied with or without a key ring, depending on application needs.

✅ Applications

• Aerospace ground fixtures and tool systems

• Industrial machinery and modular equipment

• Jig and fixture locking

• Structural frames and support connections

• Marine and offshore rig components

• Renewable energy assemblies (e.g., wind turbines)

✅ Specifications

Standard Range:

• Pin Diameters: 5 mm to 20 mm

• Usable Lengths: 10 mm to 150 mm

• Head: Flat round style with center push-button

• Ring: Optional key ring for manual operation or lanyard

Custom drawings accepted for non-standard sizes or head styles.

✅ Key Features

• Push-button ball release for quick and tool-free use

• Automatic ball locking ensures secure retention

• Stainless steel 304 body for strength and corrosion resistance

• Ideal for repeated installation/removal cycles

• ⚙️ Custom diameters and lengths available upon request

✅ Ordering Information

To receive a quote or sample, please specify:

• Diameter (e.g., Ø10 mm)

• Grip length or overall length (e.g., 50 mm)

• Quantity

• Whether ring handle is needed

• Any OEM requirements (e.g., logo, packaging)
