Plug Screw
Stainless steel plug screw for precision positioning in industrial fixtures and tooling. Made of SUS 304. Sizes and thread types can be customized.
Plug screw Product Description

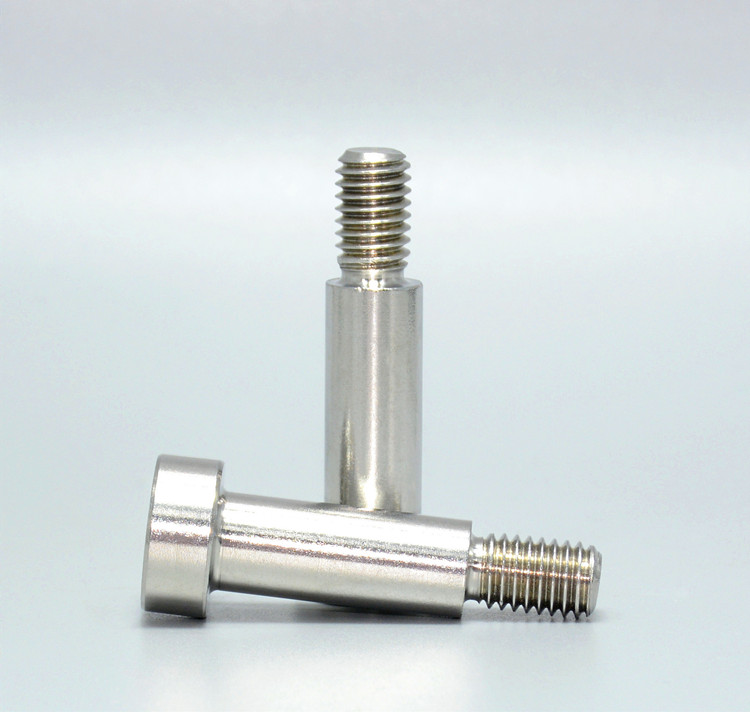

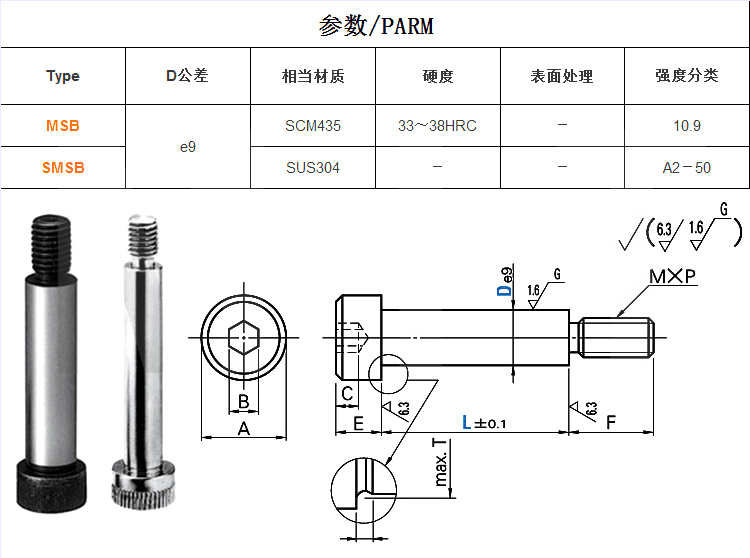

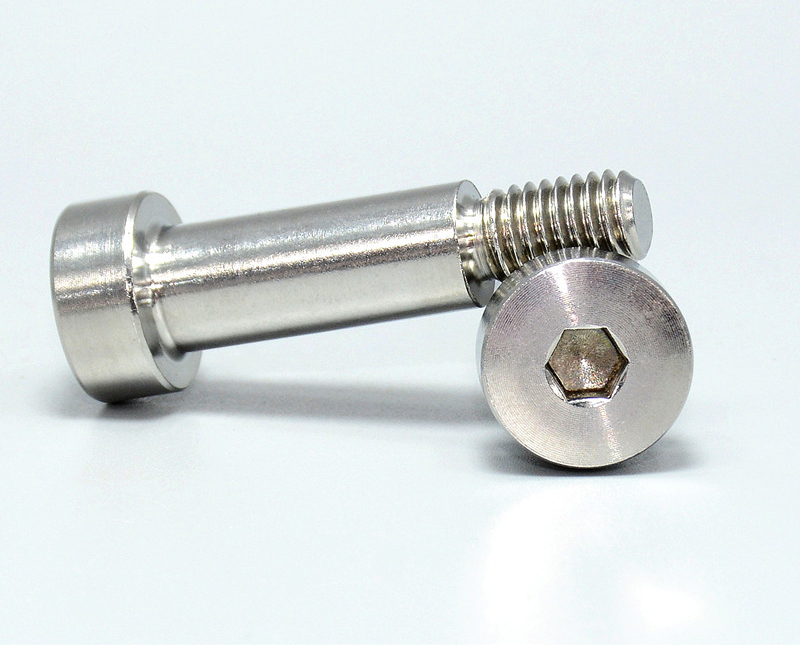

This stainless steel plug screw is engineered for precision alignment and secure positioning in mechanical assemblies. Manufactured from high-grade SUS 304 stainless steel, it features a cylindrical body with a chamfered tip and hex socket head for easy installation and removal. The unthreaded portion ensures accurate locating, while the threaded section provides firm fixation.
Commonly used in jigs, fixtures, molds, and precision machinery, the plug screw delivers excellent corrosion resistance and long-term dimensional stability. It’s available in a wide range of diameters and lengths, with custom sizes and thread specifications available upon request.
Product Features
Material: SUS 304 Stainless Steel
Thread Type: Metric or UNC/UNF (customizable)
Head Type: Hex socket head for tool access
Surface: Smooth machined body with precise tolerances
Application: Precision positioning, anti-rotation, fixture alignment
Threaded + Ground section: Combines holding strength with accurate fit
Customization: Thread length, overall length, and body diameter can be tailored to your project requirements
Typical Applications
Precision fixtures and jigs
Injection mold tooling alignment
Mechanical stops and guides
Positioning in automation equipment
Fastening with repeatable precision

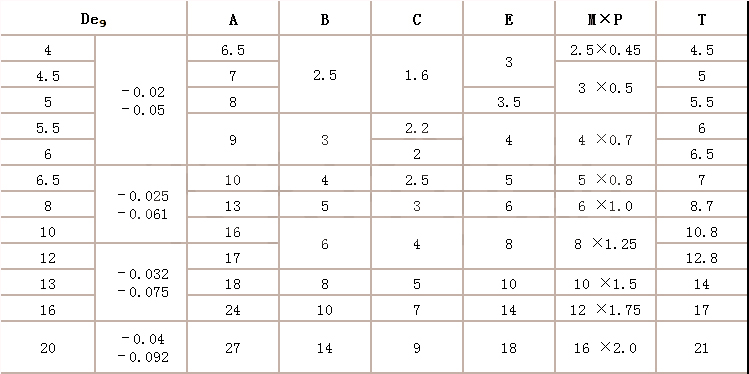

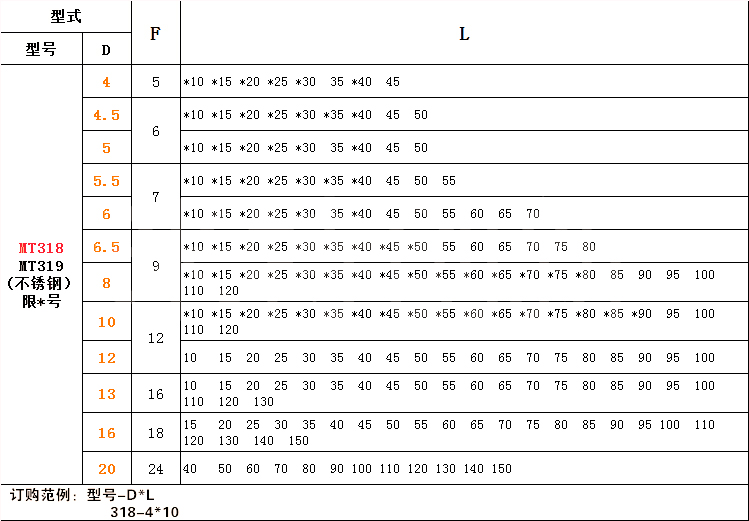

Technical Specifications (example)
| Diameter (D) | Overall Length (L) | Thread Length | Thread Size | Material |
|---|---|---|---|---|
| 6 mm | 40 mm | 10 mm | M6 x 1.0 | SUS 304 |
| 8 mm | 50 mm | 12 mm | M8 x 1.25 | SUS 304 |
Custom dimensions and threads available upon request.
