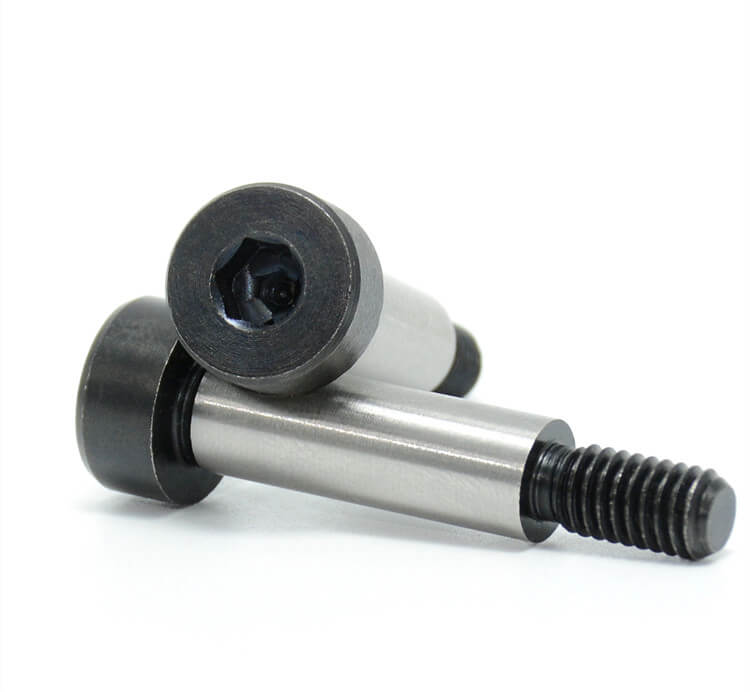

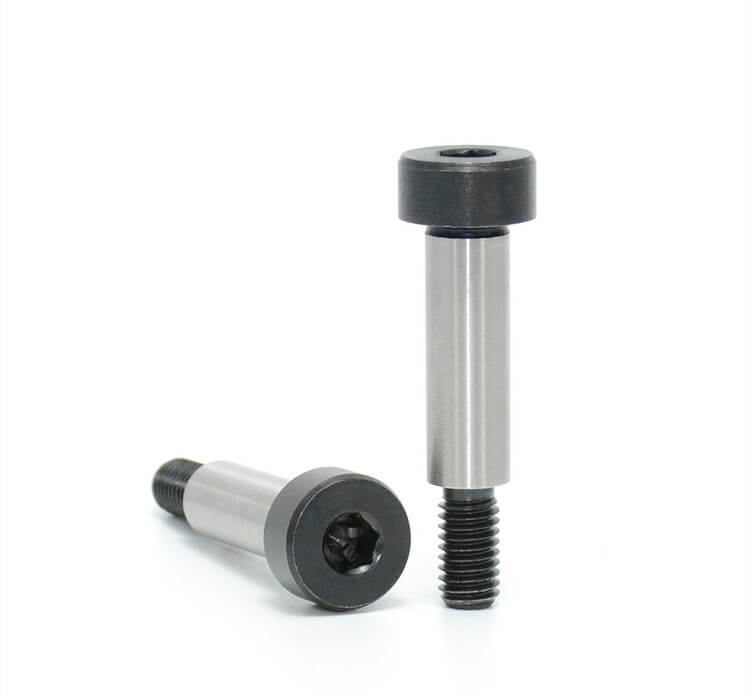

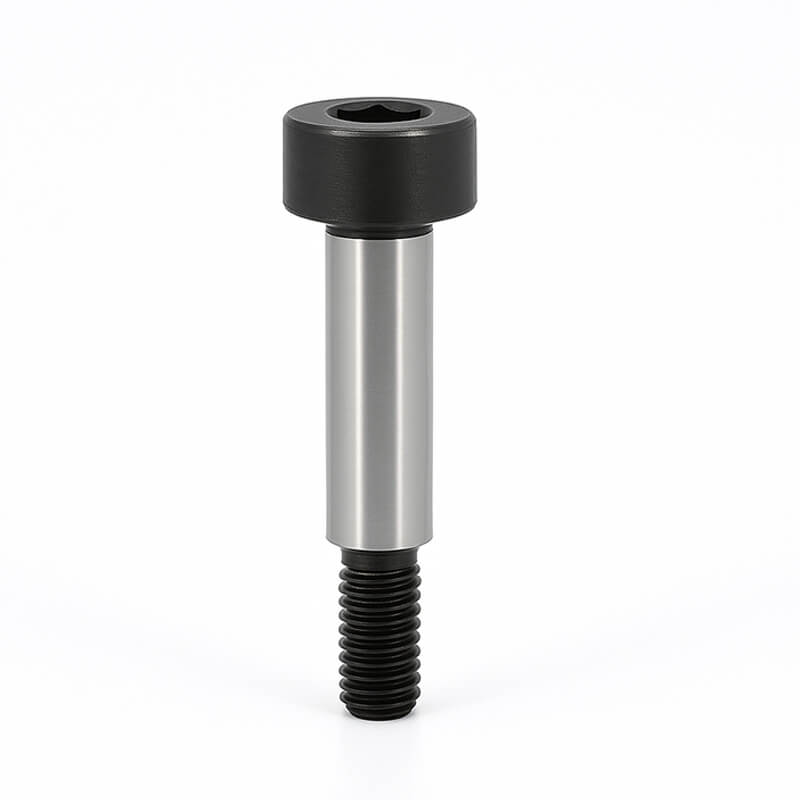

Precision Shoulder Bolt – Hex Socket Head

This shoulder bolt—also known as a shoulder screw—is engineered for high-strength applications requiring accurate component alignment, sliding, or rotation. The design features a long, precision-ground shoulder with a consistent diameter, paired with a standard threaded section and hex socket head for secure fastening.

The shoulder acts as a dowel, spacer, or guide, commonly used in jigs, tool fixtures, die assemblies, moving parts, and mechanical linkages. The hex socket head allows for easy installation and removal with an Allen wrench.

Offered in hardened alloy steel or stainless steel 304/316, this bolt is suitable for both general-purpose industrial use and high-corrosion environments. Full dimensional customization is available based on your technical drawing or sample.

Applications

• Automation and fixture assemblies

• Robotics and linear motion systems

• Mold bases and stamping dies

• Rotating joints and pivot arms

• Machine tool setups

• Automotive and aerospace components

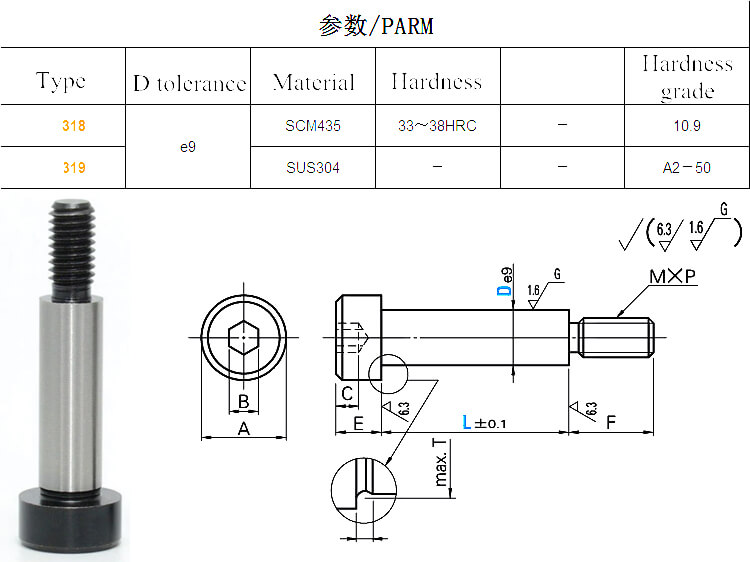

✅ Technical Specifications

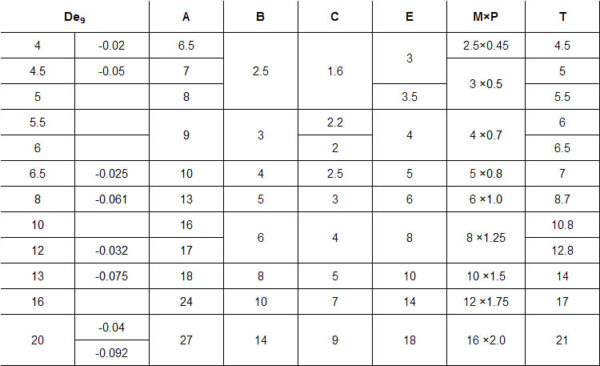

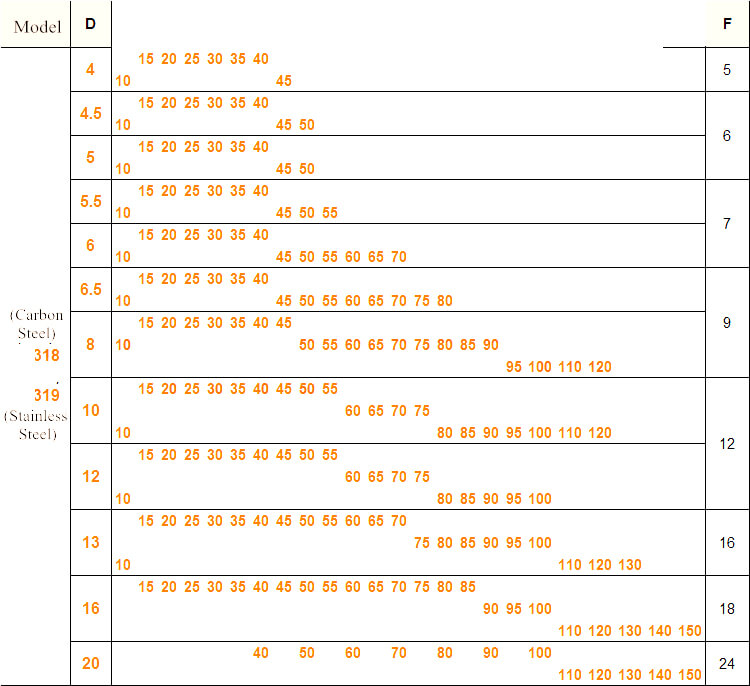

Available Sizes:

OEM dimensions and tolerances can be made to drawing or CAD model.

✅ Key Features

• Precision-ground shoulder for consistent fit and alignment

• Hex socket head for strong, torque-resistant tightening

• Dual-function as both fastener and shaft

• Ideal for locating, pivoting, or sliding applications

• Custom dimensions and threads available

✅ Ordering Information

Please include in your inquiry:

• Shoulder diameter & length

• Thread size and type (e.g., M8x1.25)

• Quantity

• Preferred material (e.g., stainless steel 304)

• Drawings or CAD file if available
