Stainless Steel Indexing Plunger

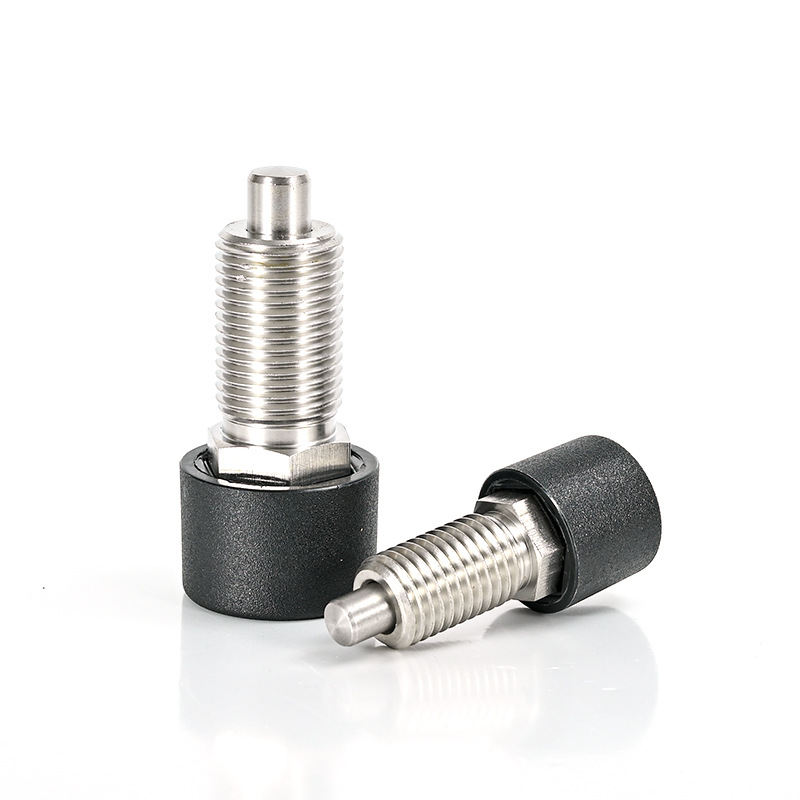

Stainless steel indexing plunger with threaded body and pull knob. Ideal for jigs, machinery, and modular positioning systems. Material and size can be customized.

Stainless Steel Indexing Plunger Product Description

This stainless steel indexing plunger offers secure positioning and quick release functionality for a wide range of industrial and mechanical assemblies. The design features a threaded body for easy installation into pre-tapped holes and a spring-loaded pin that can be retracted by pulling the external knob.

Once released, the pin automatically locks into place, ensuring accurate repeat positioning without the need for additional clamping. The robust stainless steel pin and body are suitable for high-load environments, and the knurled knob provides a reliable grip for frequent manual operation.

Key Features

Material: SUS304 stainless steel (body and pin)
Thread Type: Metric / UNC available
Operation: Pull knob to retract, spring locks pin automatically
Mounting: Threaded body with hex base for wrench tightening
Pin Type: Ground cylindrical locating pin
Sizes: M8, M10, M12, M16, M20 – customizable on request
Knob Material: Black plastic knob for ergonomic handling

Typical Applications

Positioning devices in jigs and fixtures
Locking elements in adjustable frames or guides
Height and alignment indexing on industrial machines
Secure repeat positioning in packaging or automation lines

Technical Overview

Parameter	Value
Thread Sizes	M8, M10, M12, M16, M20
Pin Diameter	5 mm – 12 mm
Pin Stroke	5 mm – 10 mm
Overall Length	As per model (customizable)
Actuation Force	25 – 40 N (spring type dependent)

Custom pin length, thread size, or locking type available upon request.
